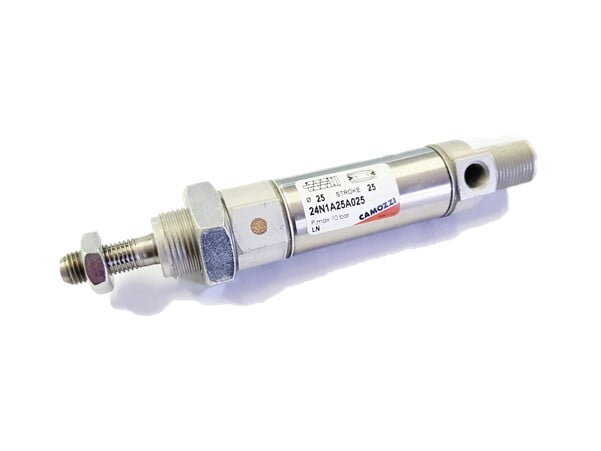

24N1A25A025

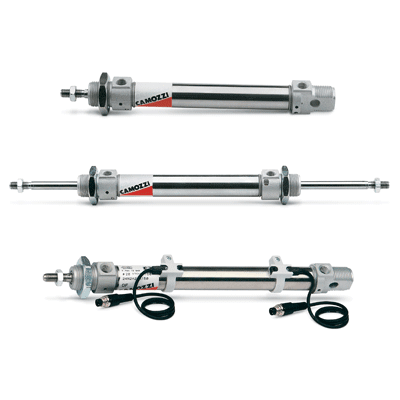

Ø25 x 25mm SPRING RETURN MINI CYLINDER SERIES 24
Choose Quantity
R550.00 R1,175.00
Product Details
Type of construction: crimped
Operation: single-acting
Design: ISO 6432
Materials: anodized aluminium end-caps - stainless steel barrel and rod, aluminium piston - NBR/PU seals, other parts: see catalogue
Operating temperature: 0°C ÷ 80°C (with dry air -20°C)
Operating pressure: 1 ÷ 10 bar (double-acting); 2 ÷ 10 bar (single-acting)
Speed: 10 ÷ 1000 mm/sec (without load)Fluid: filtered air in class 7.8.4 according to ISO 8573-1. If lubricated air is used, it is recommended to use oil ISO VG32. Once applied the lubrication should never be interrupted.

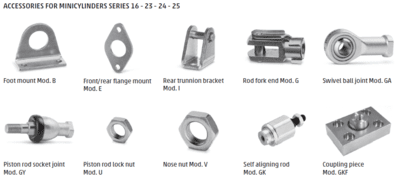

Brackets available: rod end - flange - feet - trunnion
Other Stroke available, min - max: Series 16 ø 8 ÷ ø 10: 10 - 250 mm - Series 16: ø 12: 10 - 300 mm - Series 23, 24 and 25 ø 16: 10 - 600 mm; ø 20 - ø 25: 10 - 1000 mm
Other Bores available: Series 16: ø 8, 10, 12 - Series 23, 24 and 25: ø 16, 20, 25
